Fume Extraction System

Presenting our innovative Fume Extraction System, the optimum solution for businesses seeking the best in air quality control and workplace safety. As a trusted manufacturer, supplier, and service provider, and with over 1 year of experience, we deliver spectacular performance through our flagship products, including the Fume Extraction System and Industrial Fume Extraction System. Featuring advanced filtration technology, high suction power, seamless installation, energy-efficient operation, and minimal maintenance requirements, our systems outshine conventional alternatives by offering a must-have combination of efficiency and reliability. Designed for diverse industrial applications, our Fume Extraction System ensures effective removal of hazardous fumes, protects equipment, and promotes a healthier working environment-making it the best choice for forward-thinking organizations. Take advantage of our limited-time offers and get unmatched support and supply ability across All India. Choose our Fume Extraction System for spectacular results and optimum safety in your facility.

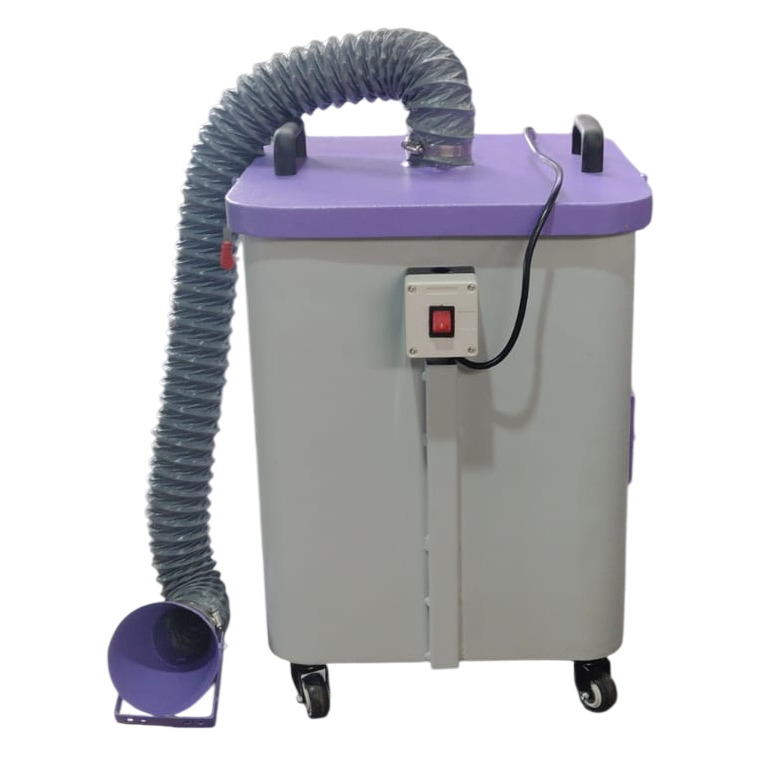

Fume Extraction System

Fume Extraction System

Fume Extraction System

Fume Extraction System

MOQ : 1 Unit

Air Flow
250-350 m3/h

Automation Grade
Semi-Automatic

Capacity
Designed for small to medium workspaces

Cooling System
Other, Air Cooled

Dimension (L*W*H)
Approx. 350 x 300 x 420 mm

Display Type
No Display / Manual Switch Control

Efficiency
>95% for particulate and fume absorption

Instruments Type
Fume Extractor

Material
Powder Coated Metal Body

Noise Level
<70 dB

Orientation
Portable, Floor-standing

Power Source
Electric

Processing Time
Continuous

Product Type
Fume Extraction System

Scrubber Type
Filter Cartridge

Sensor Type
Not Equipped

Surface
Smooth, Easy to Clean

Temperature
Max. Operating Temp 50C

Usage & Applications
Soldering, Electronics Assembly, Laboratory Fume Removal

Voltage
220-240V AC

Weight
Approx. 8-12 kg

Industrial Fume Extraction System

Industrial Fume Extraction System

MOQ : 1 Unit

Air Flow
1100-3500 m3/h

Automation Grade
Semi-Automatic / Automatic (as required)

Capacity
1000-5000 m3/h

Cooling System
Other, Air Cooled

Dimension (L*W*H)
800 x 600 x 1500 mm

Display Type
Digital Panel

Efficiency
99%

Instruments Type
Fume Extractor

Material
Powder Coated MS / Stainless Steel

Measurement
Real-Time Air Quality Monitoring (Optional)

Noise Level
Less than 75 dB

Orientation
Vertical

Power Source
Electric

Processing Time
Continuous

Product Type
Industrial Fume Extraction System

Reactor Thickness
3-5 mm

Scrubber Type
Wet / Dry Scrubber (Optional)

Sensor Type
Particulate / VOC sensor (Optional)

Surface
Anti-rust powder coated

Temperature
Up to 60C continuous

Usage & Applications
Fume extraction in industrial welding, soldering, laser cutting, laboratories, chemical industries

Voltage
220-415 V AC

Weight
50-120 kg

✕
